Weber 32/36 DGAV Autochoke Carburettor FORD OHC 1.6/2.0 Pinto
- Brand: Weber
- Product Code: 2268087200
- Availability: In Stock
£307.97
- Ex Tax: £256.64

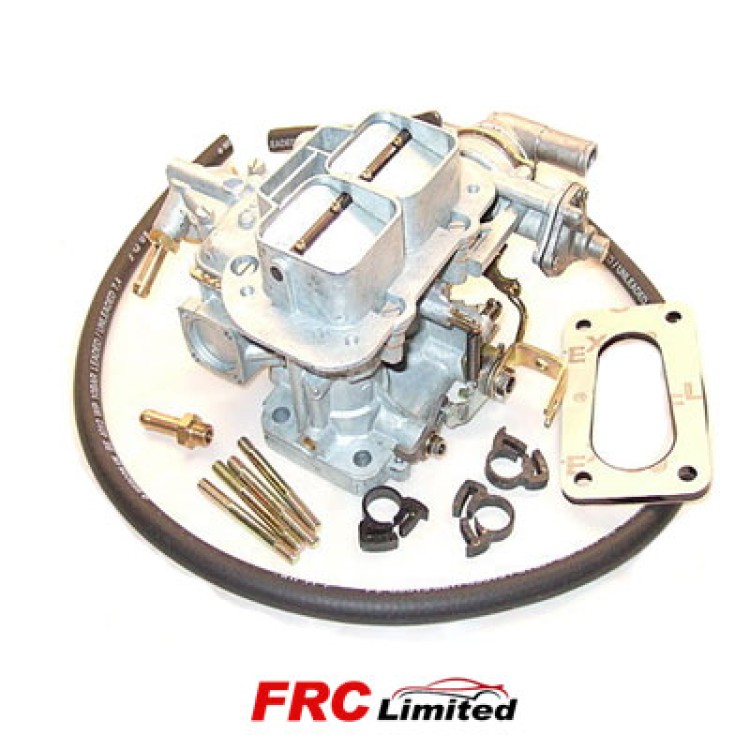

Weber 32/36 DGAV carburettor, part number 2268087200, ready to fit a 1.6/2.0 OHC Pinto Ford engine or your own specialised application.
It is fitted with a single fuel union, but has provision for the return to tank union & pipe to be fitted if required, which is supplied.
The standard water controlled automatic choke unit is preset.
The low enrichment diaphragm is not fitted & not required.
A base gasket, fuel pipe & clips included.
The settings are:
- Chokes 26/27 (fixed)
- main jets 140/140,
- air jets 170/160,
- em.tubes F50/F50,
- idle jets 60/50,
- pump jet 50,
- n/valve 200.
