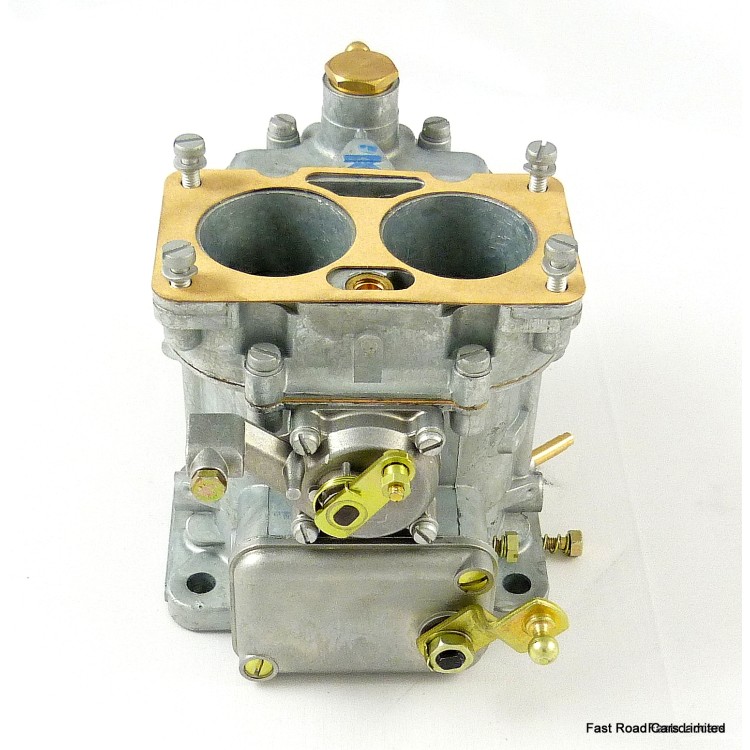

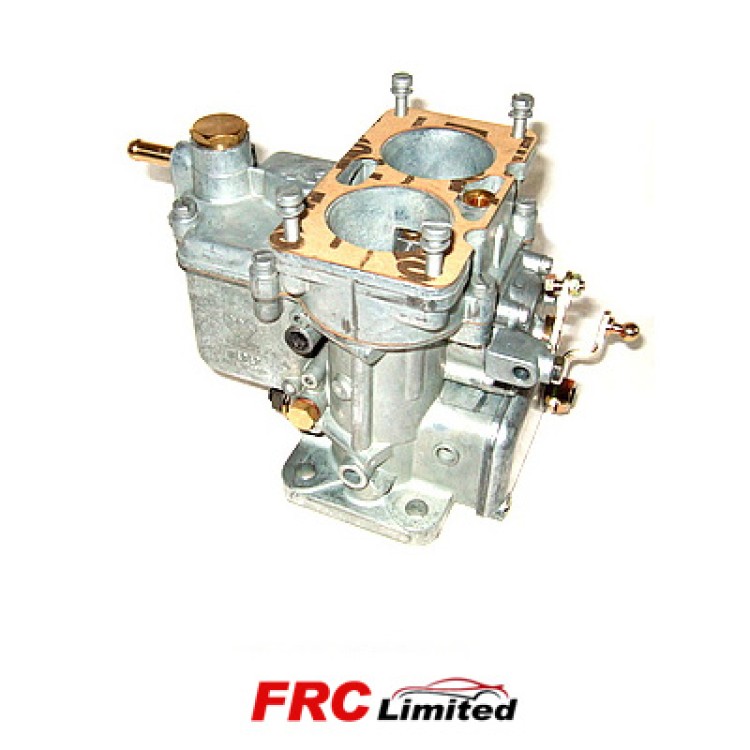

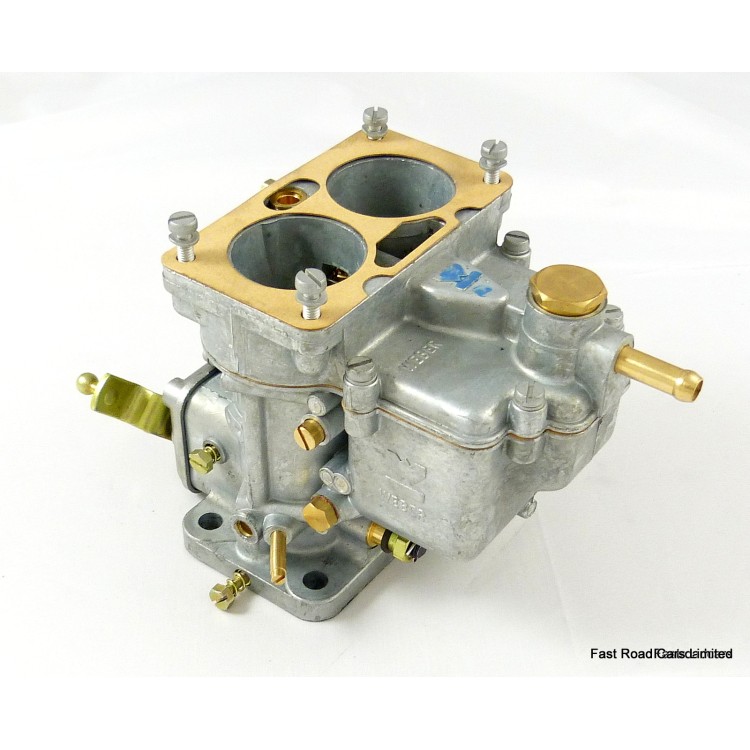

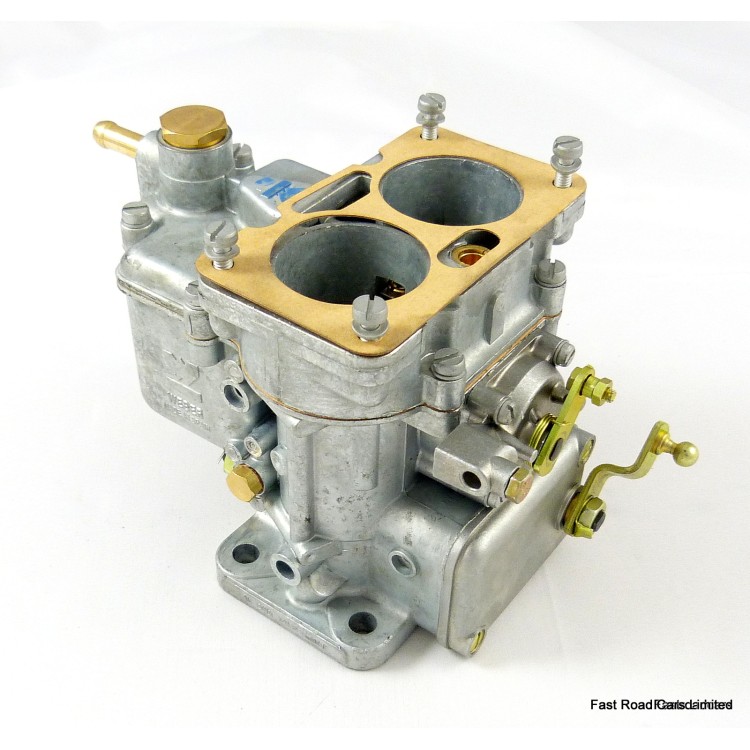

Weber 36 DCD Carburettor with Changeable Choke Tubes
- Brand: Weber
- Product Code: 1891013900
- Availability: In Stock
£952.52
- Ex Tax: £793.77
One only! Weber 36 DCD 14 carburettor, part number 18910139.
It is a progressive twin-choke & similar to the legendary 28/36 DCD.
The primary & secondary choke tubes can be changed to suit various applications, with all other jets also interchangeable. This gives a large range of options for the carburettor to be used on many different engine sizes.
Suitable to replace the 28/36 DCD as fitted to the Ford Cortina 1500 GT. Will re-calibrate to this if required.
The fixing stud pattern is the same as the popular 32/36 DGV carburettor, 48mm x 94mm hole centres. It has a manual cold start device fitted, with no choke flaps or shaft to interfere with airflow.
The settings supplied are: Chokes 25/27, main jets 135/150, air jets 190/200, idle jet 47, pump jet 70, needle valve 175.
The height from base to top is 115mm. The ball type throttle lever supplied can be changed to the DGV type. Air filters available if required.
Tags: Weber, DCD, Carburettor
