ITG Air Filter Inverted Weber DCOE
- Brand: ITG Filters
- Product Code: 1JC20
- Availability: In Stock
£103.97
- Ex Tax: £86.64
ITG air filter JC20 & steel fitting plate 43JC20 to fit your Weber DCOE or Dellorto DHLA.
The fixing bracket is inverted for use with kit cars or cars with very little bonnet clearance.
The element can also be required as the picture shows, the correct way up! This is to order & will take a little longer to supply.
If the standard element is used the logo will appear upside down!
It can be used as a single unit or in pairs.

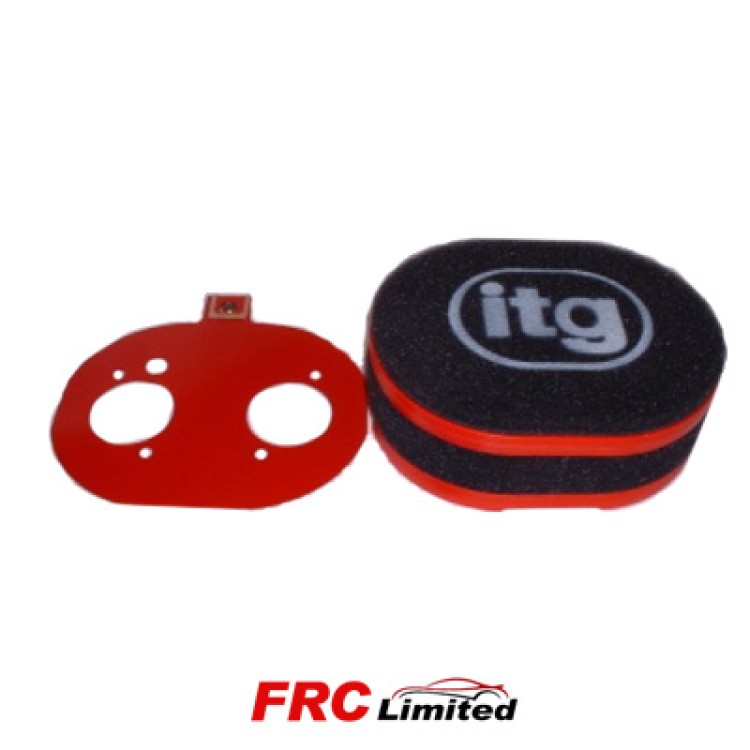

The picture shows the 40mm filter element & it is available in 25mm, 40mm, 65mm & 100mm.
These are internal heights. The width is 148mm, length(bottom) 186mm, length(top) 192mm.
The total height of each element is 50mm, 65mm, 90mm, 125mm, respectively.
The same element is used for many more applications with the base plate changed accordingly.
If you are using rampipes(airhorns) you must ensure an absolute minimum gap of 19mm or preferably 32mm between the end of the pipe & the filter.
Other ITG filters are for sale including the JC50 air boxes in the same 25mm/40mm/65mm/100mm fitments.
